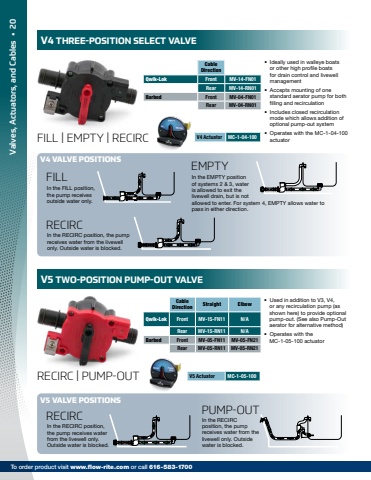

RECIRC V5 Actuator MC-1-05-100 | PUMP-OUT%u2022 Used in addition to V3, V4, or any recirculation pump (as shown here) to provide optional pump-out. (See also Pump-Out aerator for alternative method) %u2022 Operates with the MC-1-05-100 actuatorCable Direction Straight ElbowQwik-Lok Front MV-15-FN11 N/ARear MV-15-RN11 N/ABarbed Front MV-05-FN11 MV-05-FN21Rear MV-05-RN11 MV-05-RN21V5 TWO-POSITION PUMP-OUT VALVE V4 Actuator MC-1-04-100Cable DirectionQwik-Lok Front MV-14-FN01Rear MV-14-RN01Barbed Front MV-04-FN01Rear MV-04-RN01FILL | EMPTY | RECIRC%u2022 Ideally used in walleye boats or other high profile boats for drain control and livewell management%u2022 Accepts mounting of one standard aerator pump for both filling and recirculation%u2022 Includes closed recirculation mode which allows addition of optional pump-out system%u2022 Operates with the MC-1-04-100 actuatorV4 THREE-POSITION SELECT VALVE V4 VALVE POSITIONSIn the FILL position, the pump receives outside water only.In the RECIRC position, the pump receives water from the livewell only. Outside water is blocked.FILLRECIRCIn the EMPTY position of systems 2 & 3, water is allowed to exit the livewell drain, but is not allowed to enter. For system 4, EMPTY allows water to pass in either direction.EMPTYIn the RECIRC position, the pump receives water from the livewell only. Outside water is blocked.RECIRCV5 VALVE POSITIONSIn the RECIRC position, the pump receives water from the livewell only. Outside water is blocked.PUMP-OUT20 Valves, Actuators, and Cables %u2022To order product visit www.flow-rite.com or call 616-583-1700
